Mesa/Boogie

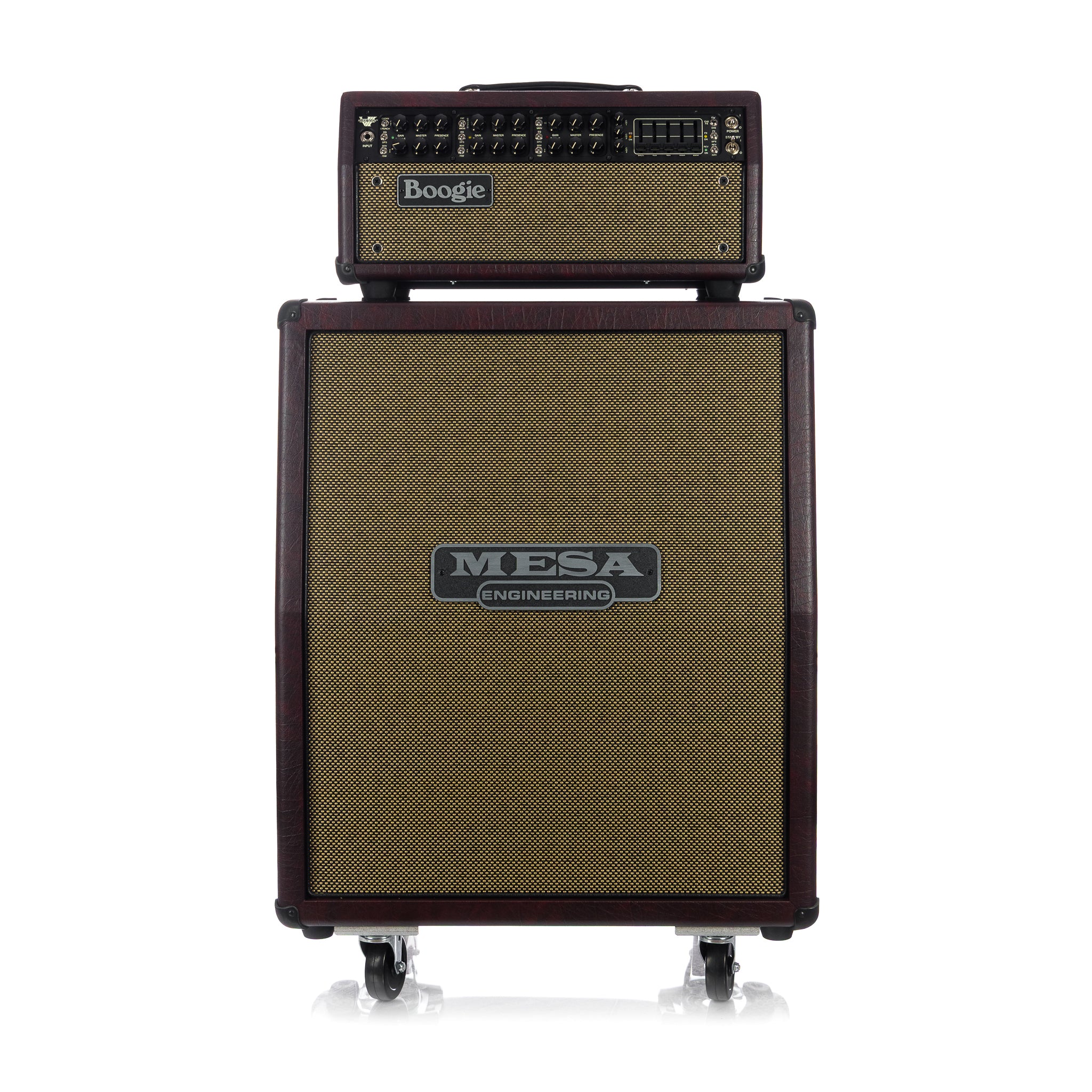

Mesa Boogie Mark VII Head w/ 2x12 Rectifier Vertical Cabinet Custom Rig - Wine Taurus w/Gold Grille
Pickup available at Interstellar Guitars
Usually ready in 24 hours
Some rigs are good. Others are inevitable.

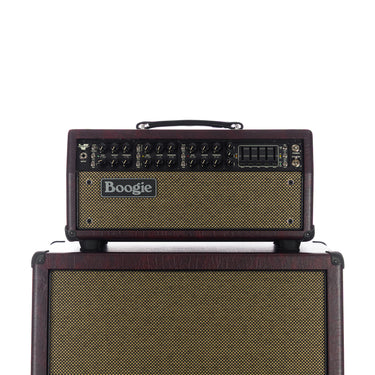

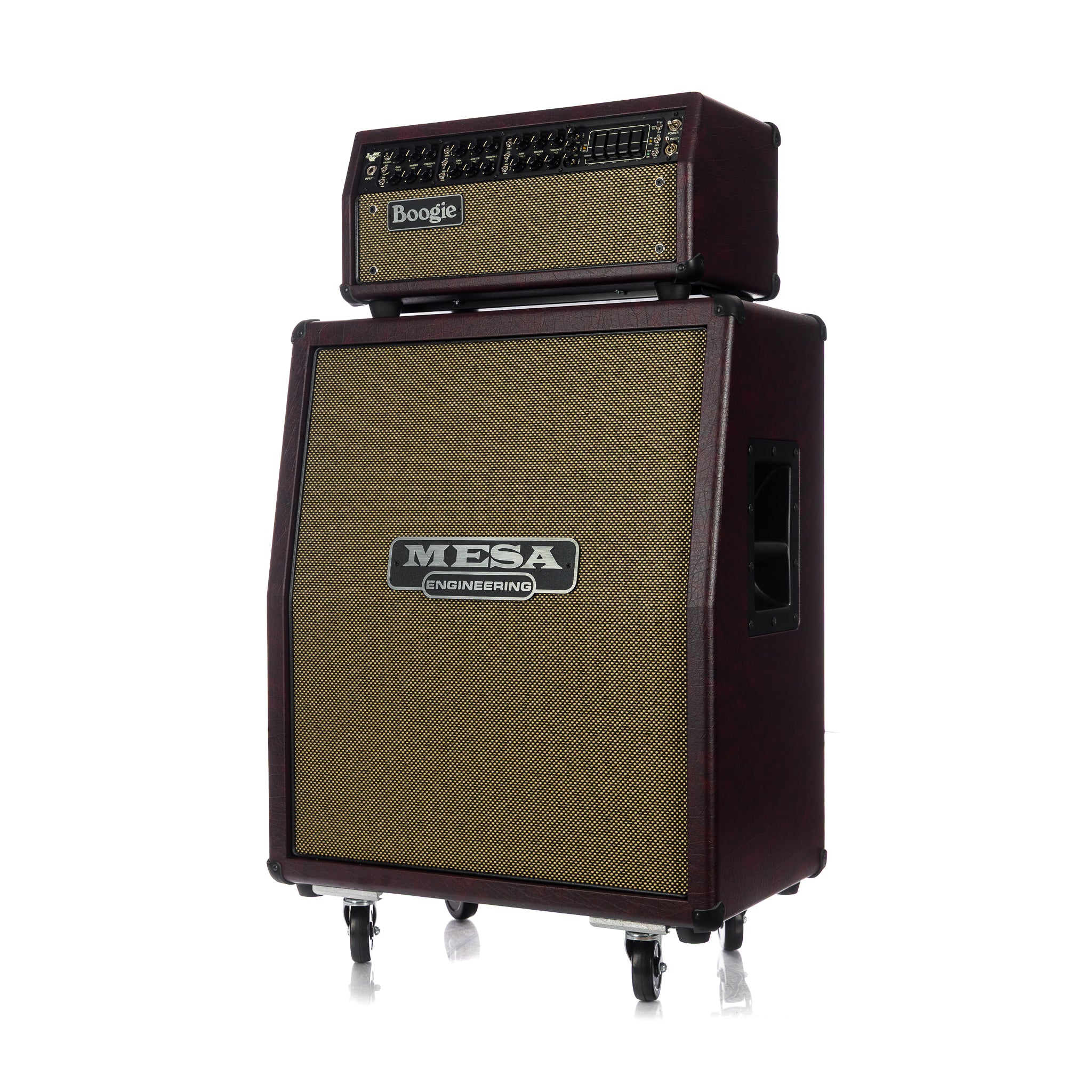

The Mesa/Boogie Mark VII Head and Rectifier 2x12 Vertical Slant Cabinet come together as the ultimate pairing—uniting Randall Smith’s most advanced Mark Series amplifier with one of Mesa’s most celebrated cabinet designs. When combined, this rig delivers the unmistakable Mark Series articulation, massive Rectifier punch, and the responsive feel that has defined Boogie tone for decades.

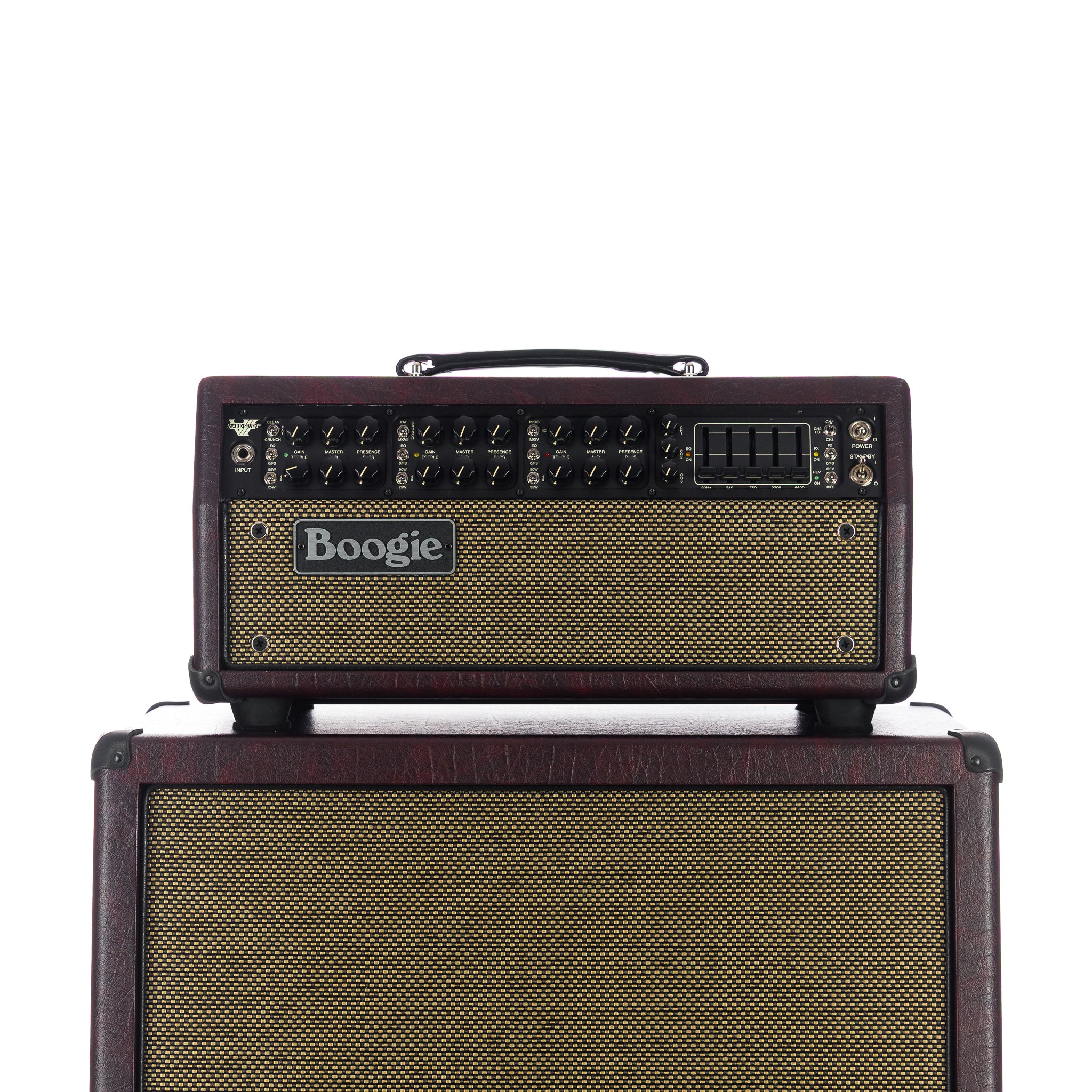

The MARK VII™ represents the Magnum Opus of Randall Smith’s 50+ year journey in amplifier innovation—distilling the legendary Mark lineage into the most versatile and compact 90-watt Mark Series amplifier ever created. With its 3-channel, 9-mode preamp, iconic Simul-Class™ power section, and features like Graphic EQ, reverb, CabClone IR™, and power switching, the Mark VII delivers everything from vintage Boogie sweetness to modern high-gain authority.

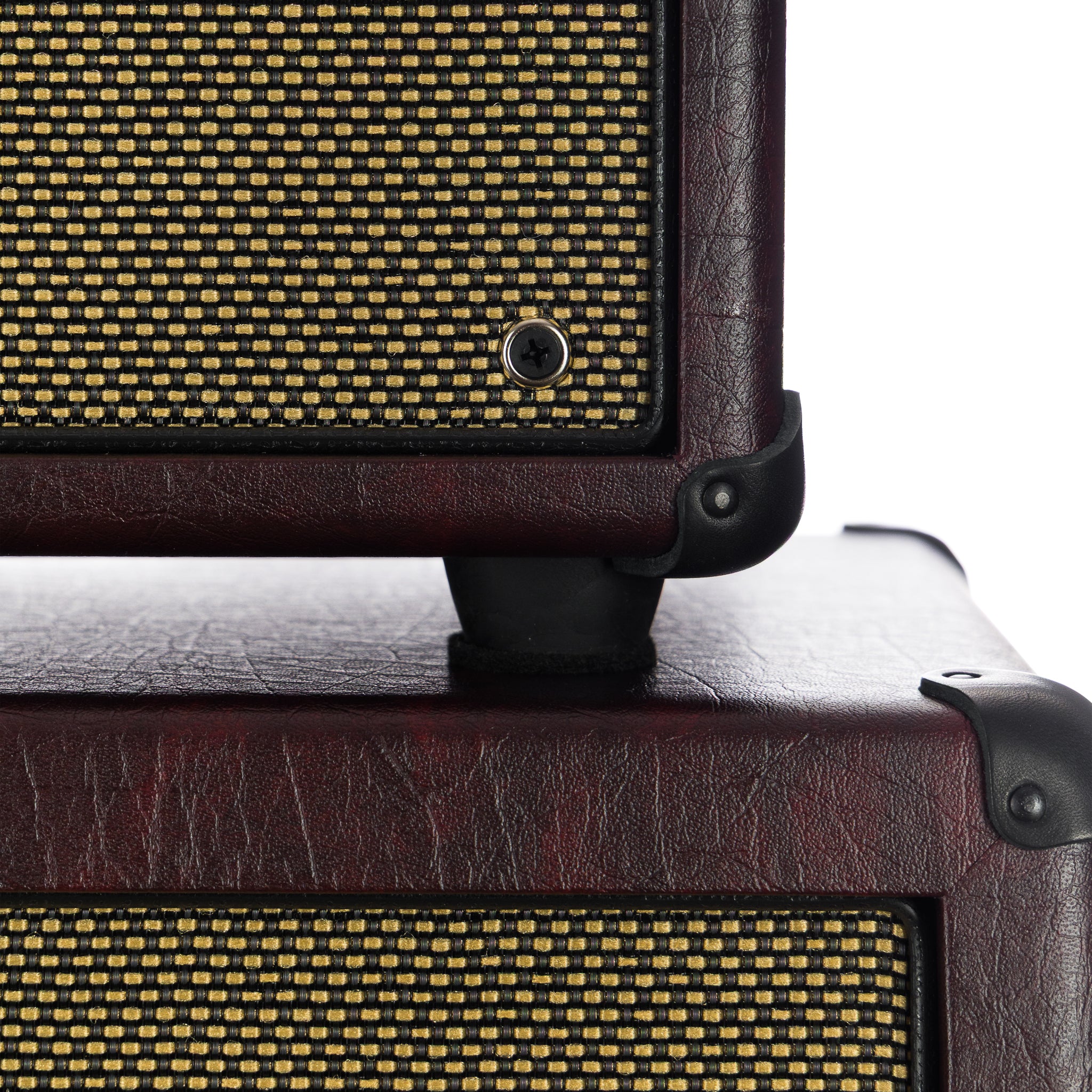

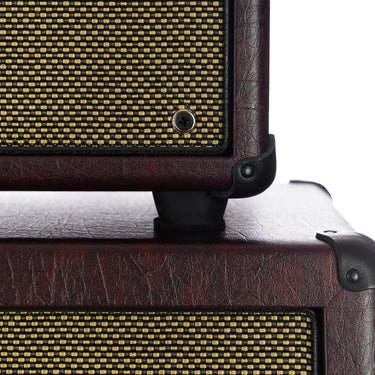

Paired with the Mesa/Boogie Rectifier 2x12 Vertical Slant Cabinet, finished here in Wine Taurus with a Gold grille, and you have a cabinet that captures the punch and projection of a 4x12 in a far more portable footprint. Built from void-free marine-grade Baltic birch and designed with Mesa’s signature vertical slant, it delivers tight low end, focused projection, and balanced response whether on stage or in the studio.

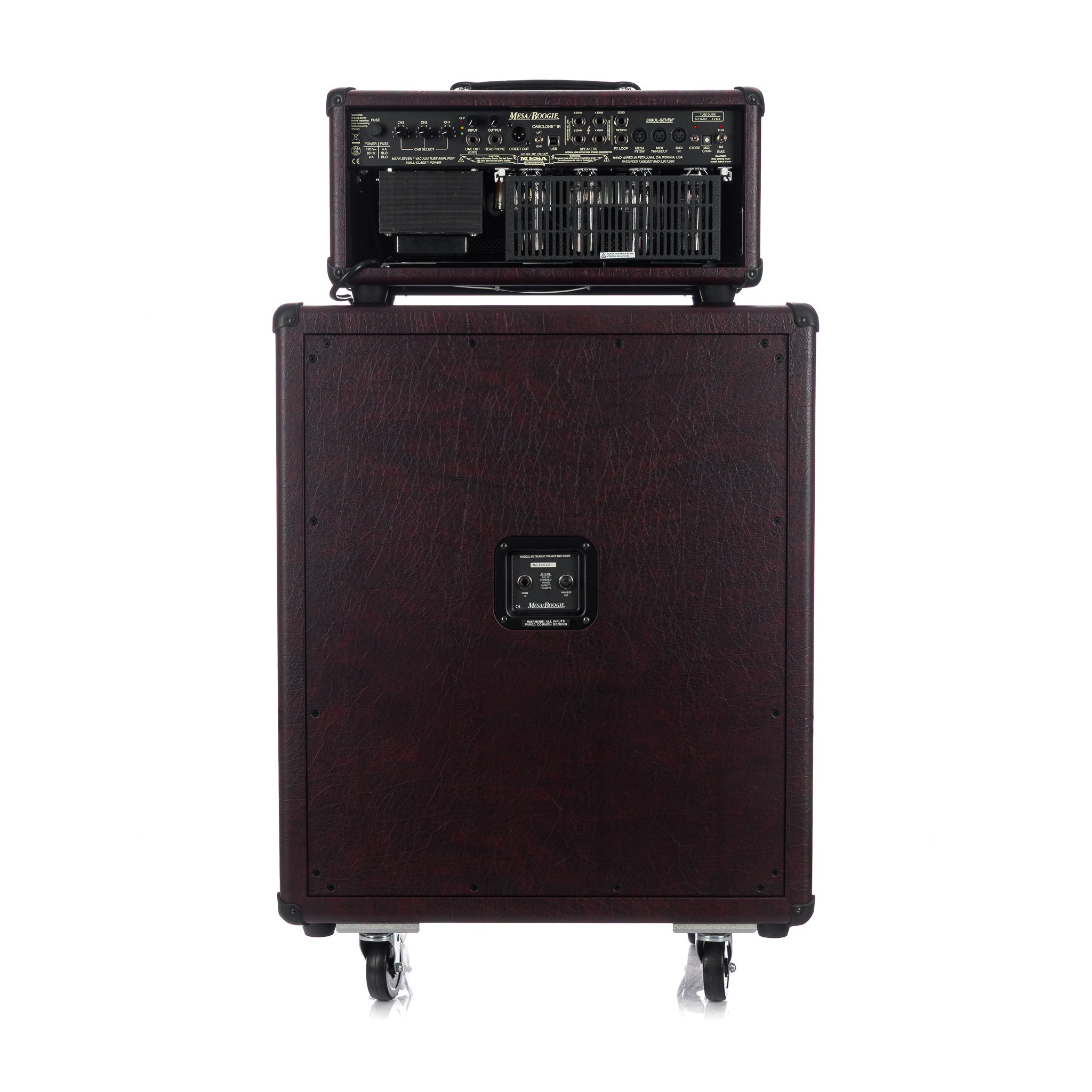

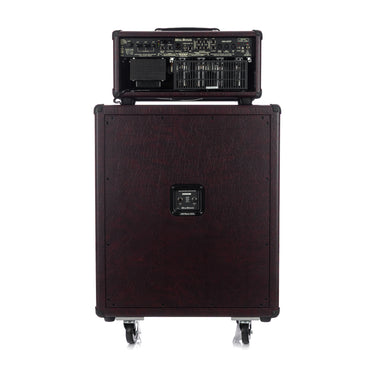

Together, the Mark VII and Rectifier Vertical 2x12 form a powerhouse rig capable of covering virtually any musical style—from vintage blues and classic rock to modern high-gain performance.
Head Specifications:
Format: Head
Channels/Modes: 3 Channels / 9 Modes

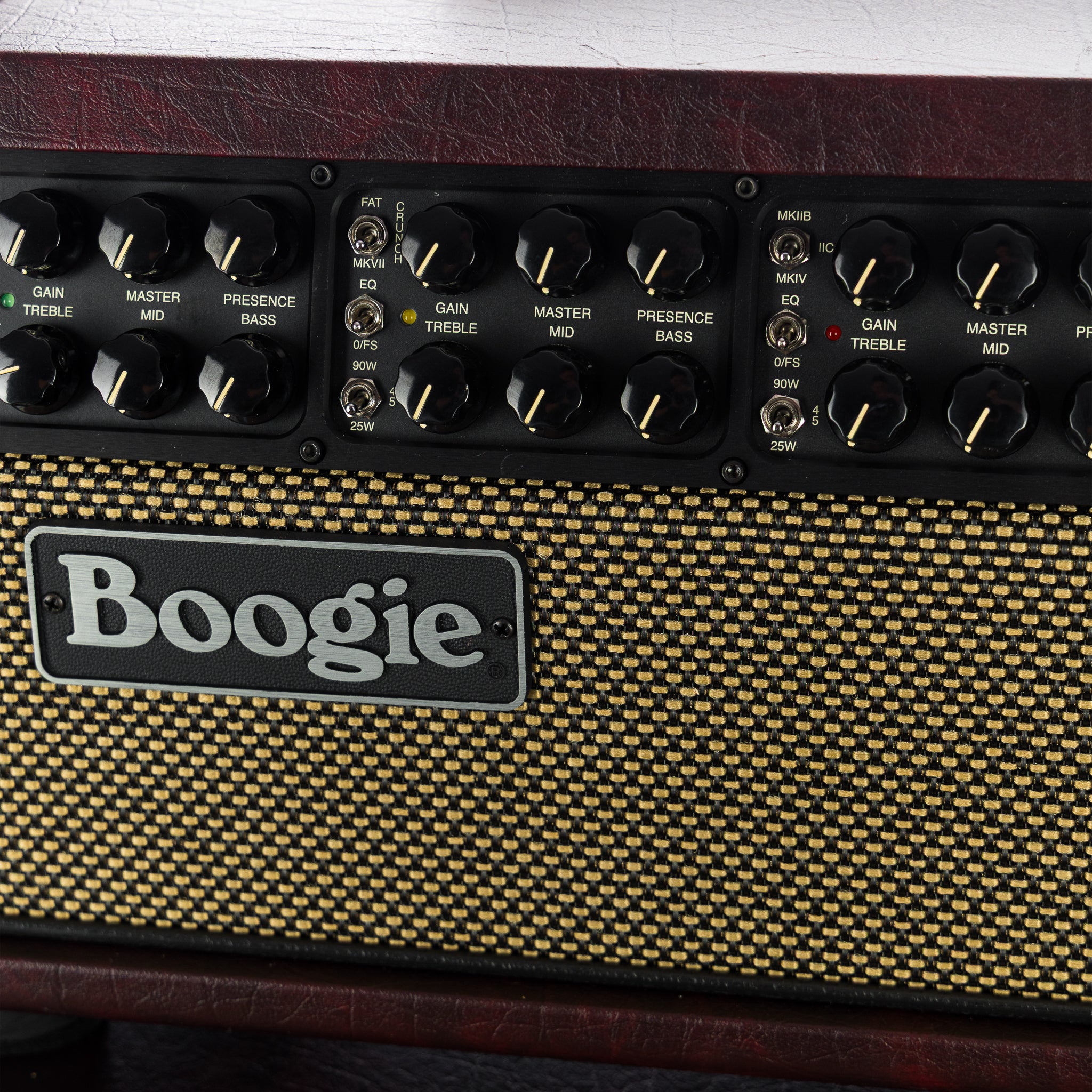

Mode Voicings: Ch. 1 = Clean, Fat, Crunch; Ch. 2 = Fat, Crunch, Mark VII; CH. 3 = Mark IIB, Mark IIC+, Mark IV

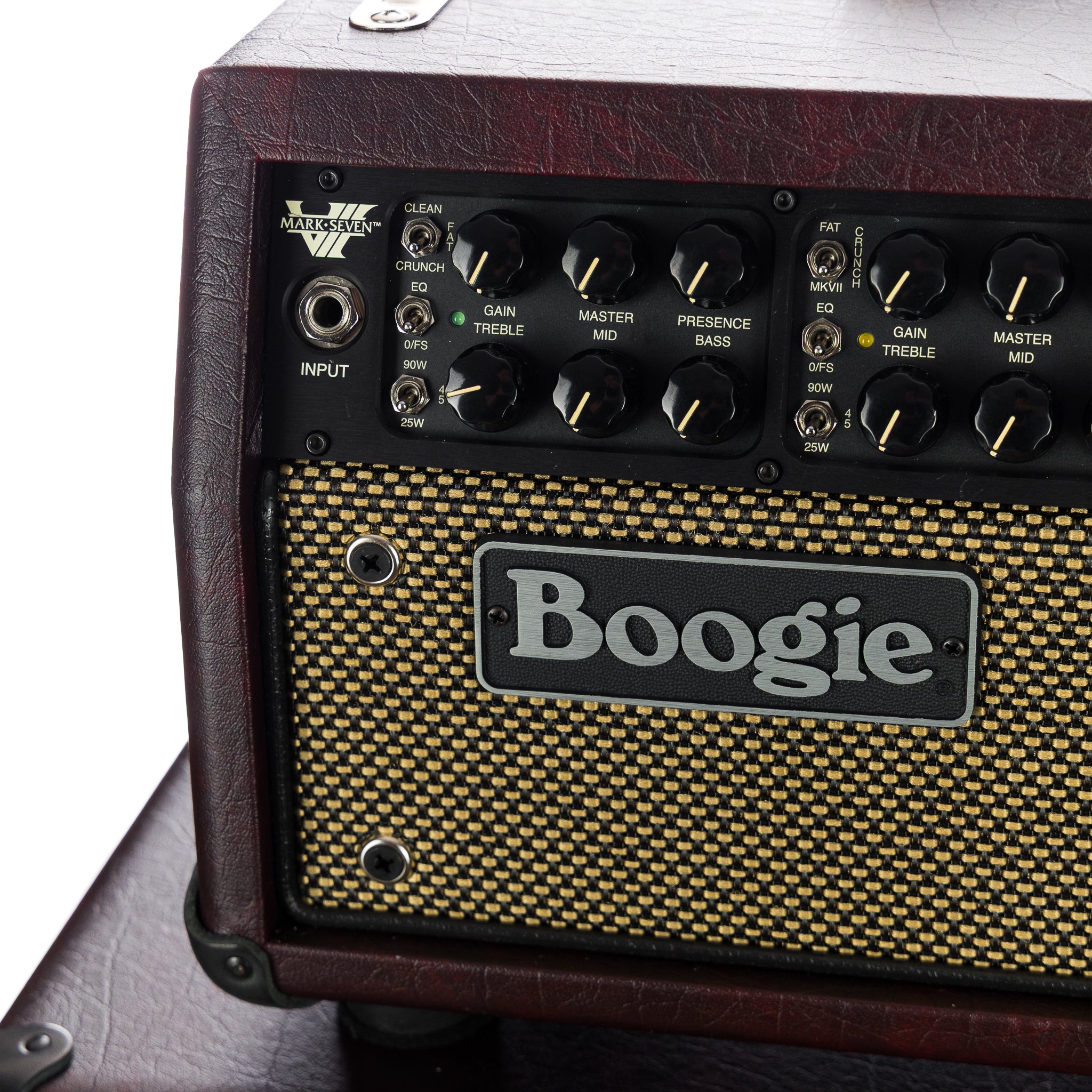

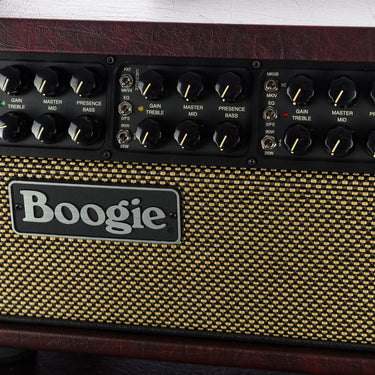

Channel Controls: Each Channel features: Independent 3-Position Style Mode Switch, Graphic EQ Assignment Switch (On, Off, or Footswitchable), Patented Watt Multi-Watt™ 90/45/25 Power Amp Switch, Gain, Treble, Mid, Bass, Presence, & Master Controls, Reverb (Footswitchable), and an 8-Position CabClone IR Select Control (back-panel)
Power Tube Type: 4x 6L6 (or optional EL34)
Bias Switch: Bias Select for 6L6 or EL34

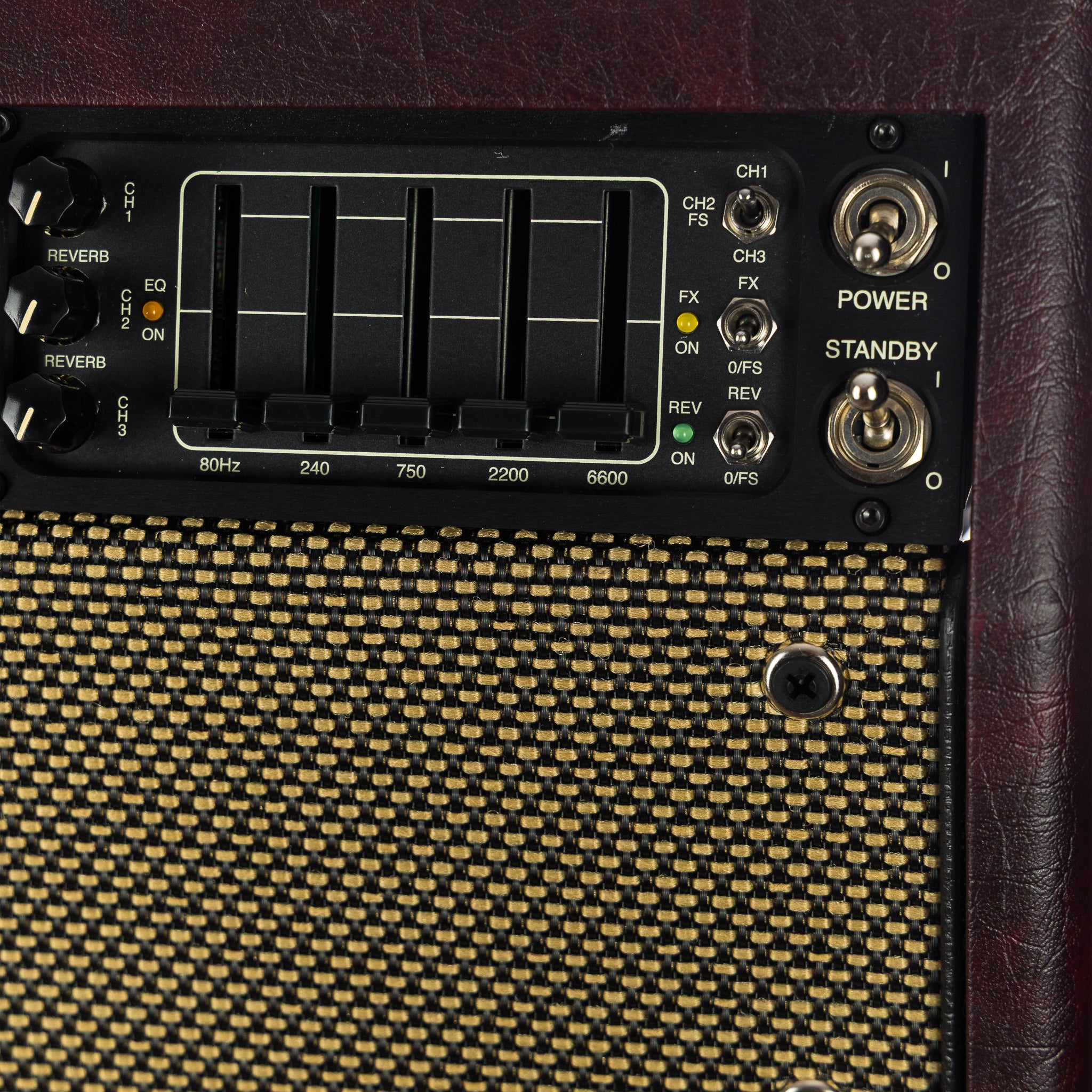

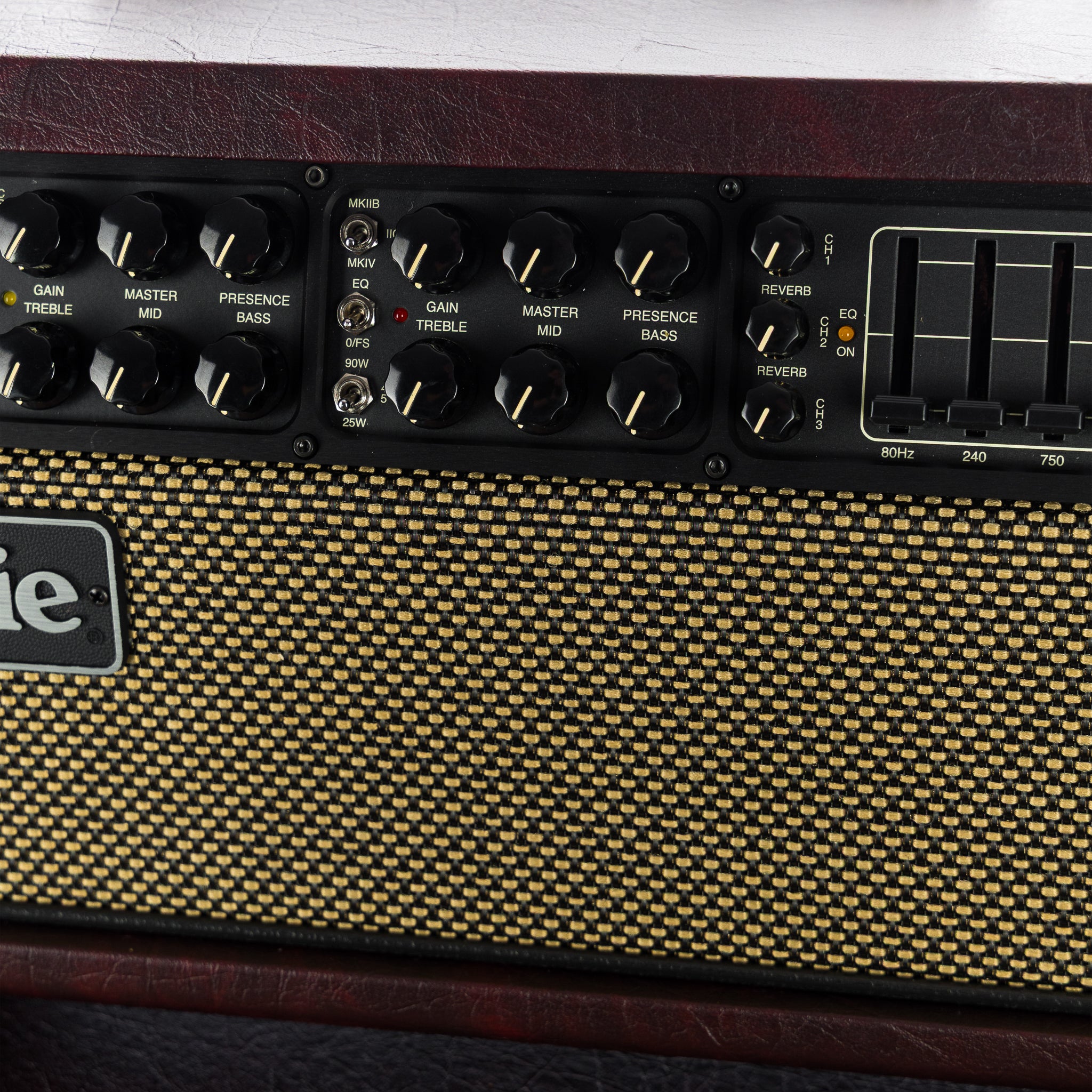

Graphic EQ: Selectable 5-Band Graphic EQ (Footswitchable, Channel Assignable or Off)
Fixed Bias: Yes
Power Amp Details: MESA/Boogie's exclusive Simul-Class™ Power Amp featuring Multi-Watt™ (Patent 7,602,927) with Incremental Wattage Reduction (Patent 9,917,560) which provide three power and two operating-class options that are channel assignable via 25/45/90 Watt Power Switches: Choose 2 power tubes operating in Class A Triode, producing 25 Watts - 2 tubes running in Class A Pentode, producing 45 Watts, or 4 tubes running in MESA/Boogie’s legendary Simul-Class Power that blends the best of Class A and Class A/B simultaneously to produce 90 Watts of pure tonal magic
Preamp Tubes: 5x 12AX7
Rectifier Type: Silicon Diodes
Fan Cooled: Yes
Effects Loop: Tube-Buffered (Footswitable Bypass)
Reverb: Independent Channel Control, All Tube, Long Tank Spring Reverb (Footswitchable)

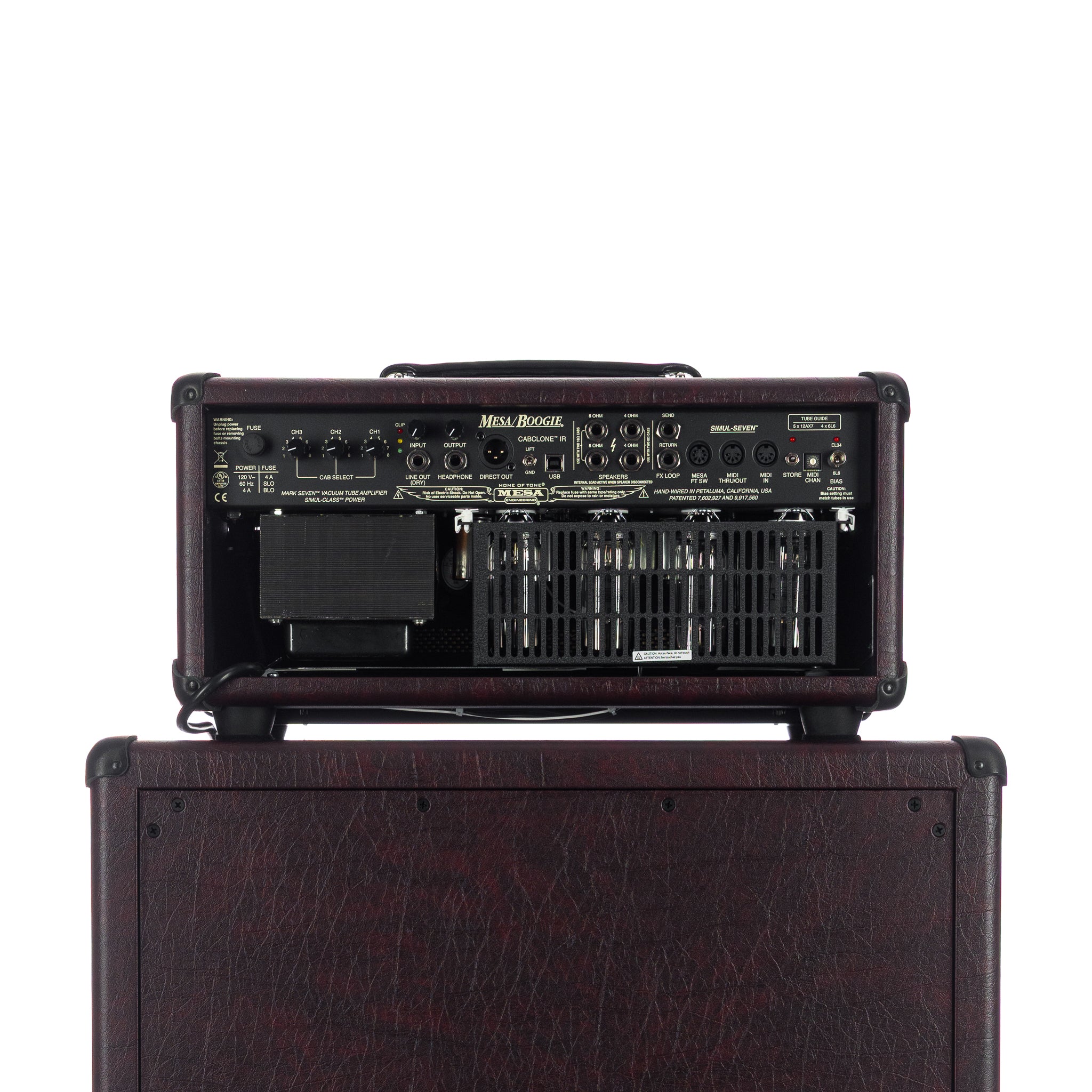

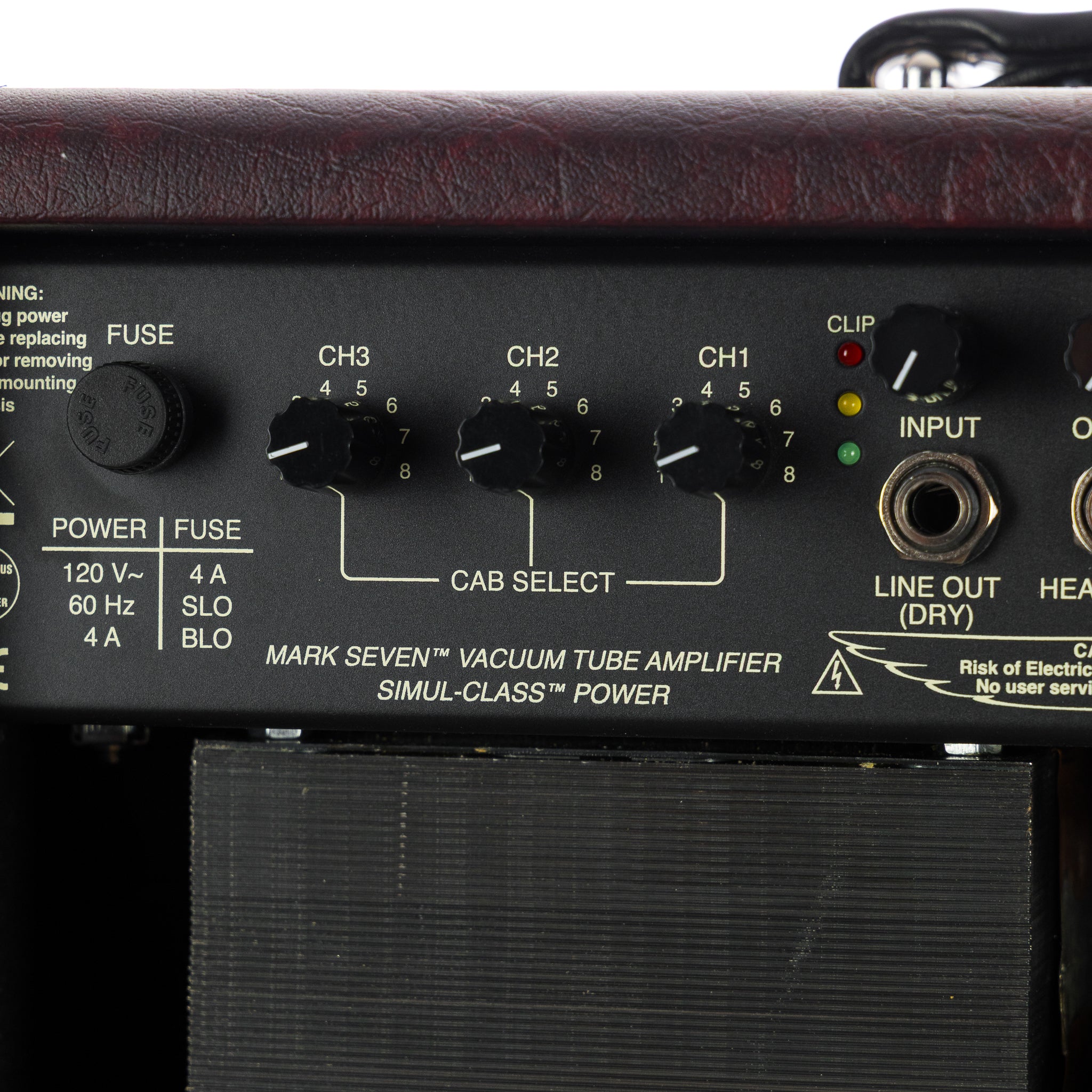

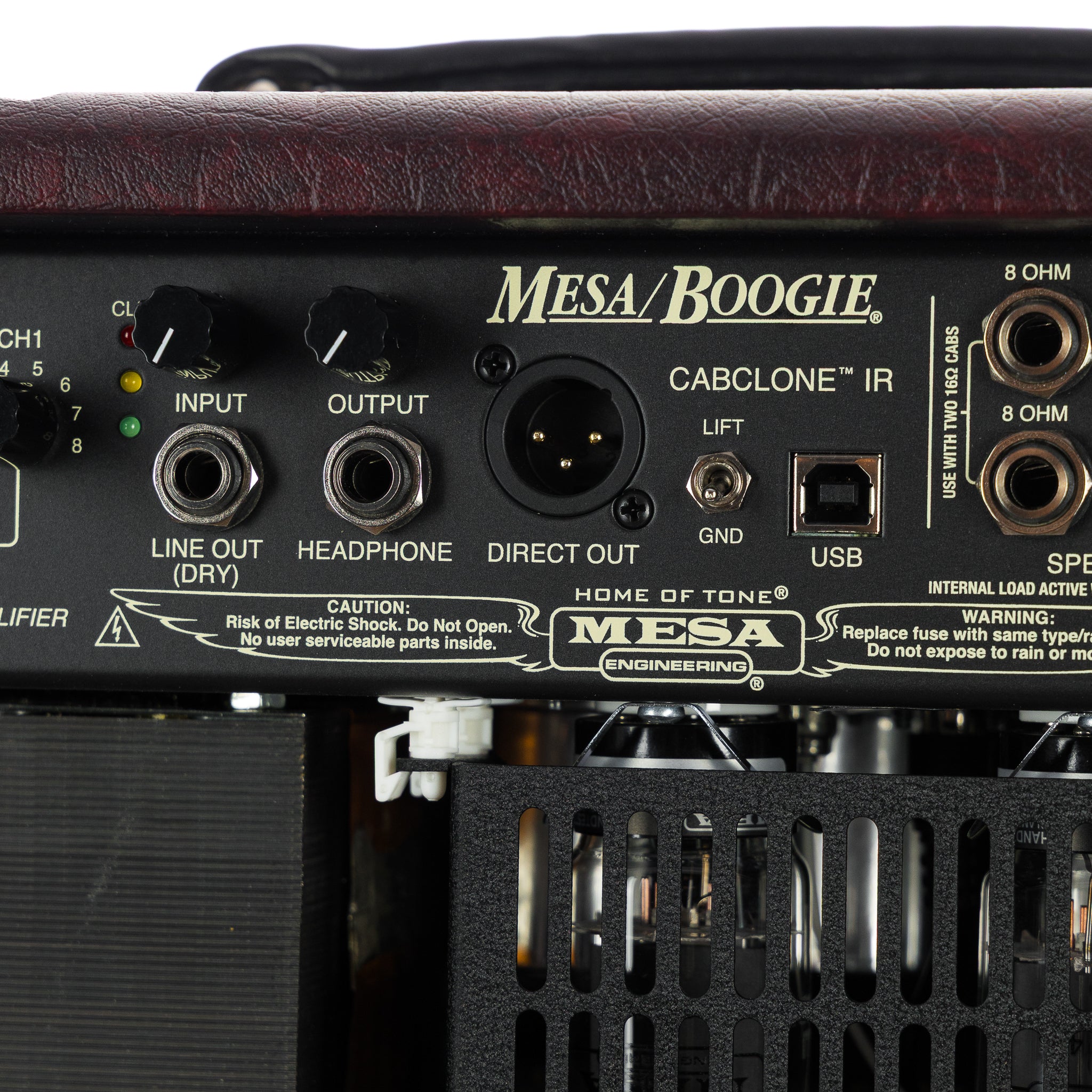

Cabinet Simulation/Direct Recording Output: Built-in, channel assignable, MESA CabClone™ IR Cab Simulator featuring 8 MESA Cabinet IRs, USB Connection for IR transfers, Internal Amp Load for cabinet-free use, Input Level Control, IR Balanced XLR Direct Output, (Dry) Line Output (Uncompensated, +4db Direct Line Output for external cab sim/IR use, Re-Amping, etc.), Headphone Output, IR Output Level Control, & Ground/Lift Switch
Internal Amp Load: Yes, allows for speaker less performance
Headphone Output: Yes

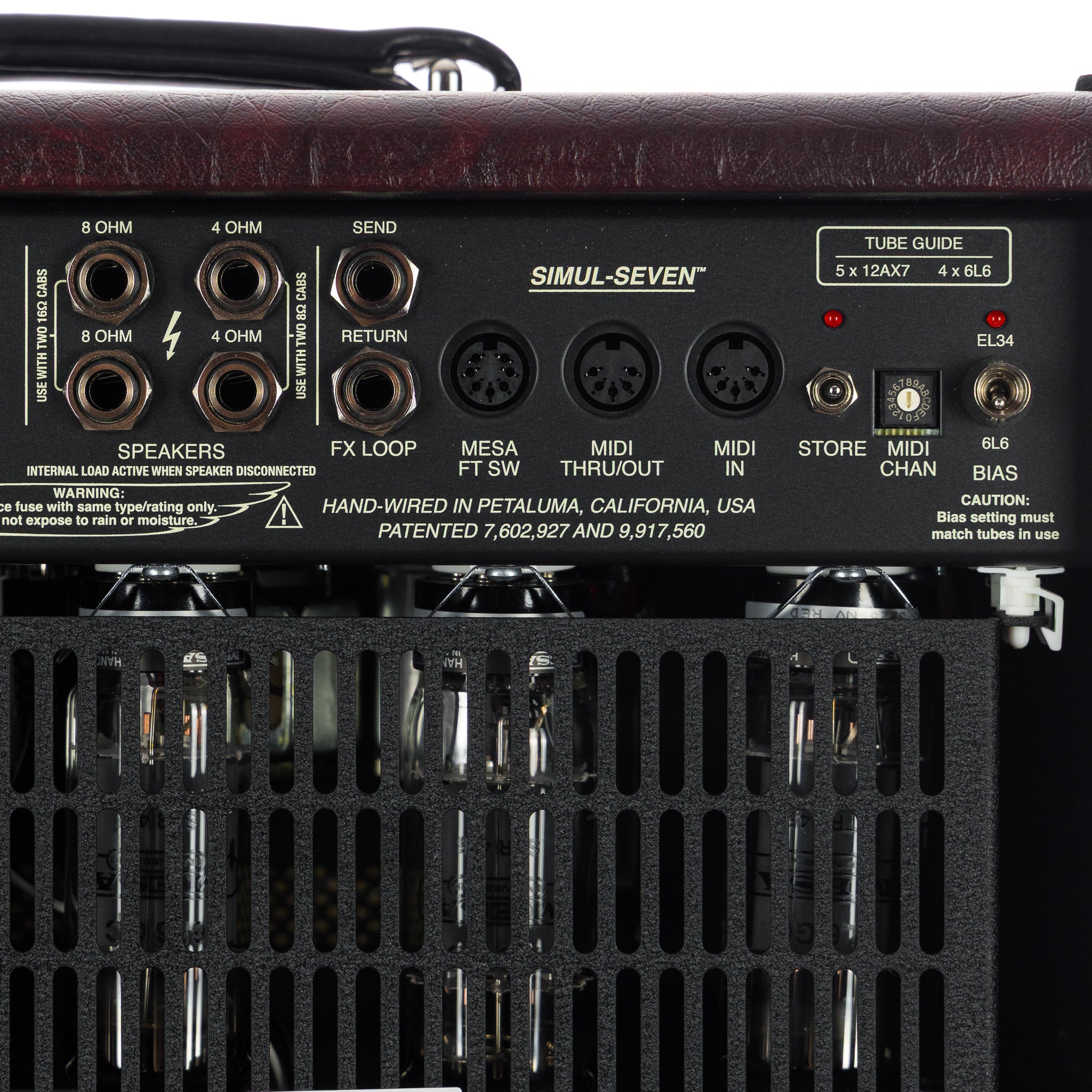

External Switching / Midi: MIDI Switchable/Programmable via Control Change and Program Change messages, with 256 Preset Location (MIDI IN, MIDI Thru/Out, MIDI Channel, & Store Switches) – Controls Channels 1, 2, 3, Reverb, FX Loop, & Graphic EQ
Speaker Outputs: Two 8 Ohm and Two 4 Ohm
Foot Switchable Functions: Ch. 1, 2, 3, Reverb, FX Loop, & Graphic EQ
Chassis Material: Aluminum
Cabinet Material: Marine Grade Baltic Birch
Dimensions: 9 1/4" H x 18 3/4" W x 10 7/8" D
Weight: 40Lbs
Accessories: Footswitch, 6 botton and slip cover Included
Cabinet Specifications:
Speakers: 2 x Celestion Vintage 30
Power Handling: 120 watts
Ohms: 8 Ohm

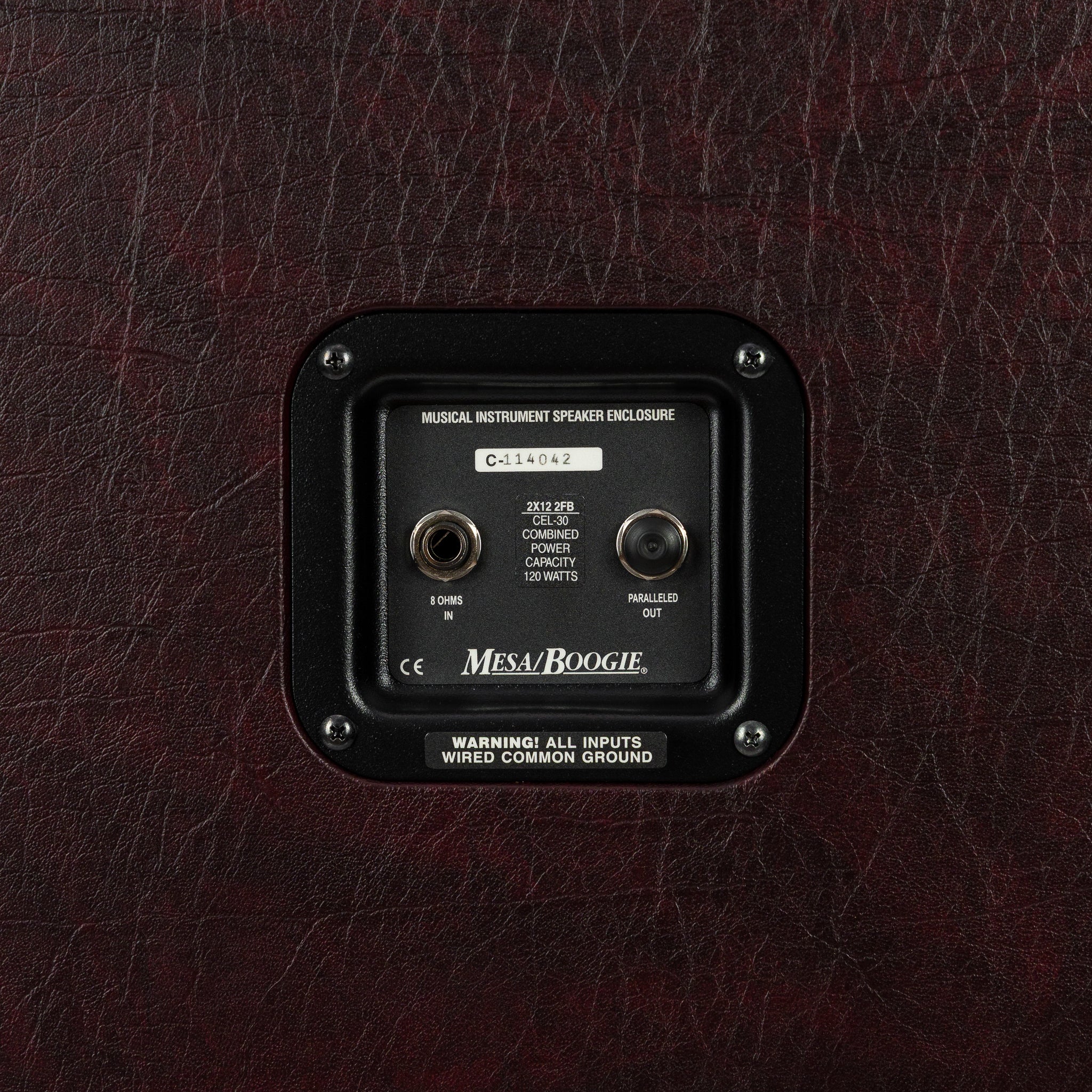

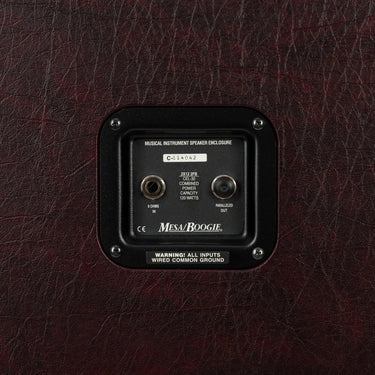

Speaker Outputs: One Parallel Out
Dimensions: 23 5/8" W x 27 7/8" H x 14.25" D
Cabinet Material: Marine Grade Baltic Birch
Weight: 70Lbs
Accessories: Slip cover and casters Included
