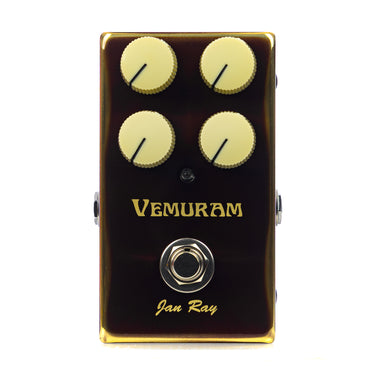

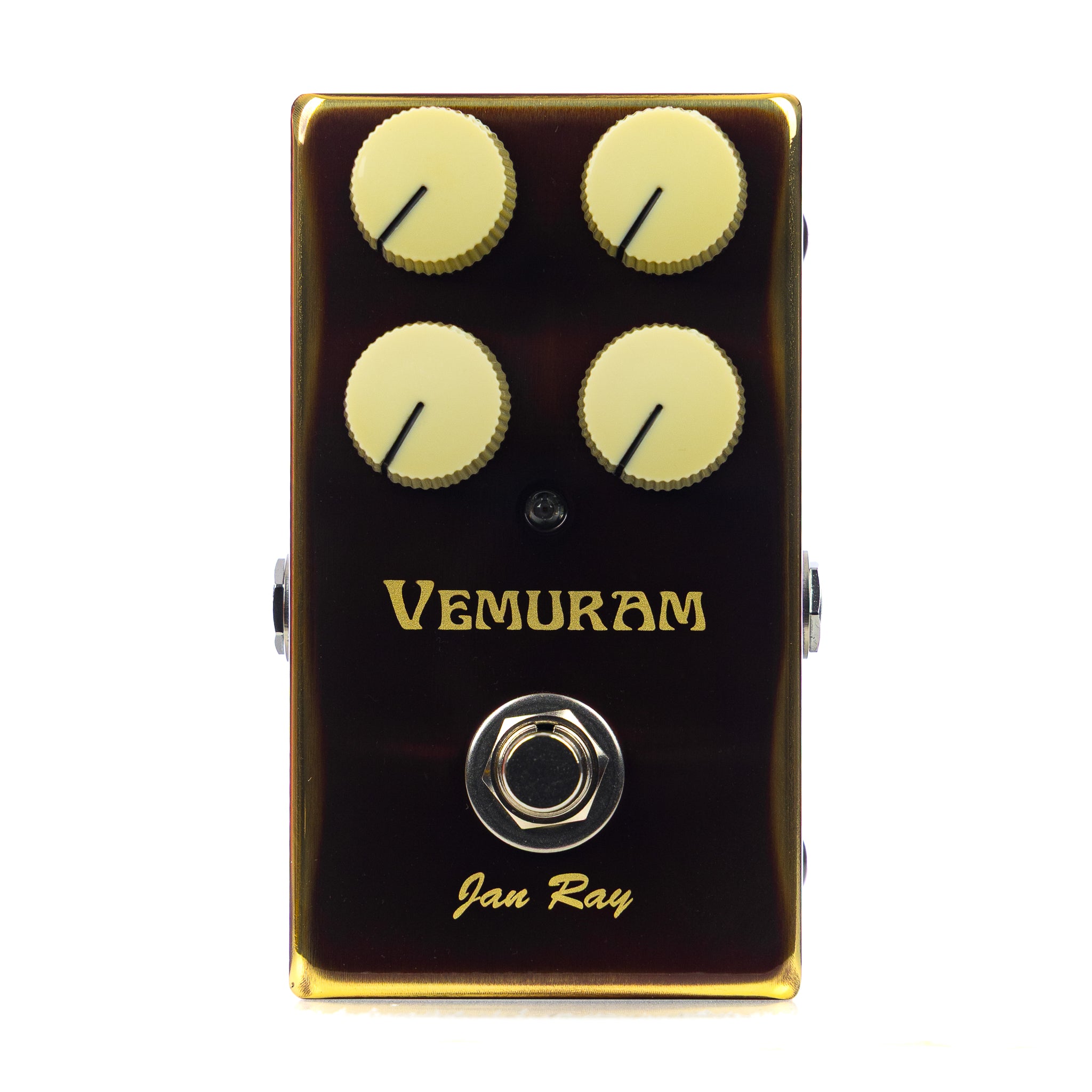

Vemuram Jan Ray Boost-Overdrive Pedal

The Jan Ray was designed to recreate the punchy clear tone of the Blackface Fender amps from the 60's. So-called the "Fender Magic 6" sound. An easy to handle overdrive keeping the characteristics of the guitar with great sustain without any unnatural compression.

Specifications

Controls

• LEVEL

• GAIN

• BASS


• TREBLE

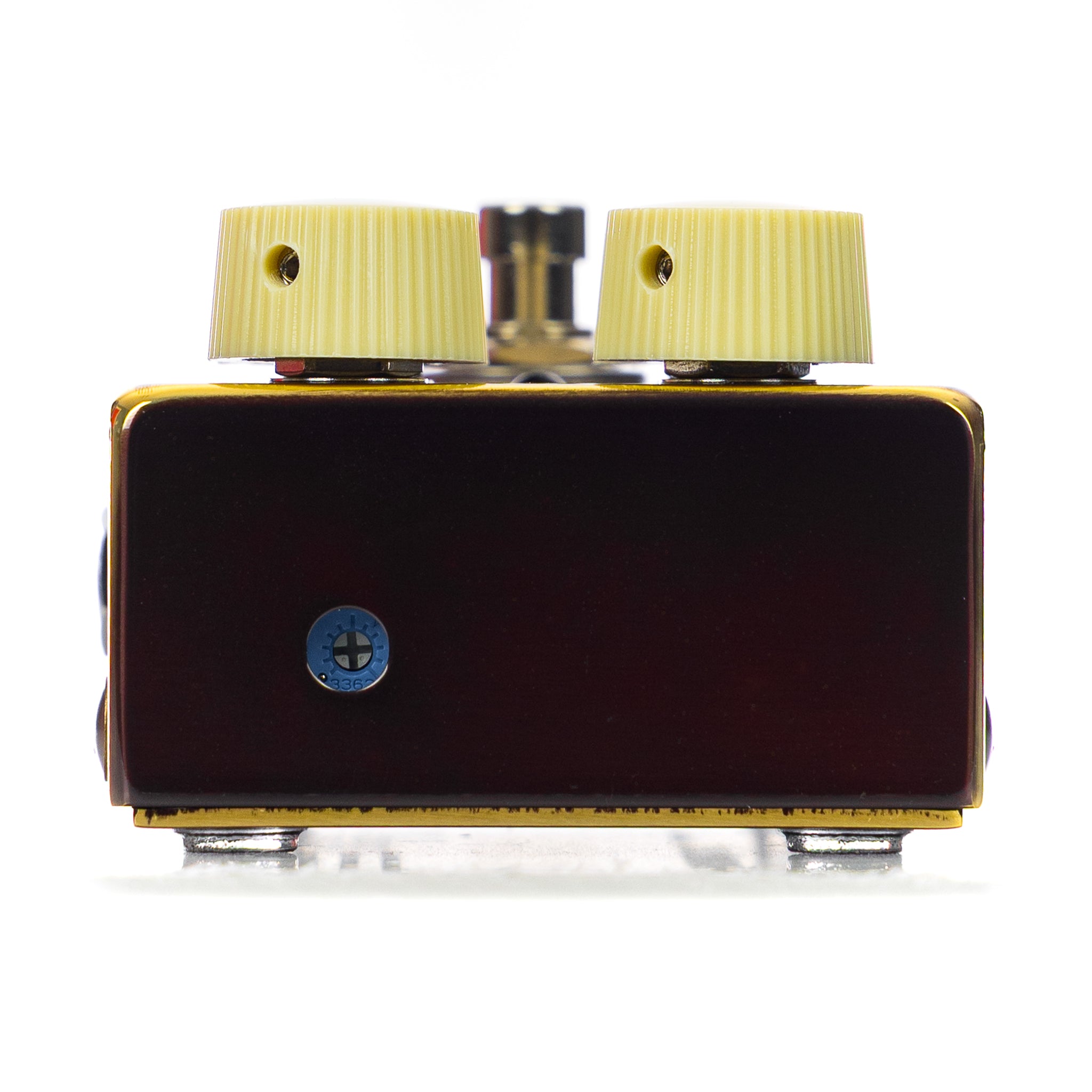

• SATURATION TRIMMER


Switches

• ON/OFF

Terminals

• Input

• Output

Power

• 006P (9V Battery)

• 9V regulated AC/DC adapter (Center Negative)

Size

• 70(W)x113(D)x50(H)mm

Weight

• 428 g

Current Draw

• 5 mA

⚠️ All of our pedals are compatible with 18V except for our fuzz pedals. But we do not recommend using 18V because it is made and designed for 9V.
*Please advise we cannot take any responsibilities for any damages using voltages higher than 9V.
